High-Performance Components: Group A Inventory
Verified OEM configurations, precision pressure relief parts, and dynamic valvetrain components cross-matched for Isuzu and Hitachi powertrains.

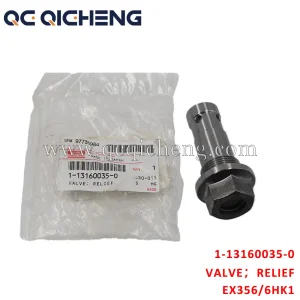

Valve Relief Oil Port Cover
Application: ISUZU EX356 6HK1 Heavy Plant
Seal Valve Guide High-Temp
Application: ISUZU EX200 6BG1 Powertrains
Gasket Air Breath Intake
Application: ISUZU ZX470 6WG1 Excavators
Generator Assembly Alternator
Application: ISUZU SK60 / NKR 4JB1-1
Pulley Idle Drive System
Application: ISUZU NMR85 4JJ1 Commercial
Grommet Screw Air Duct
Application: Isuzu NKR 55 / 4JB1 Series
Plug Rubber Cylinder Head
Application: ISUZU 4HK1 / 6HK1 Diesel
Heavy-Duty Alloy Piston
Application: Isuzu CX130B 4JJ1 Engine
Global Industrial Status: The Enduring Dominance of the Isuzu Elf NKR 55 Forced-Induction Architecture
The Isuzu Elf NKR 55 light commercial truck platform, powered by the ubiquitous 2.8-liter direct-injection 4JB1 and 4JB1-T (turbocharged) engine series, represents one of the most prolific commercial powertrain architectures deployed globally over the last three decades. Operating extensively across Southeast Asia, Latin America, Sub-Saharan Africa, Oceania, and the Middle East, the NKR 55 platform serves as the fundamental backbone for urban distribution, cold-chain transport, municipal utilities, and light vocational operations.
Within this rigorous operating framework, the turbocharger unit—primarily utilizing RHB5, RHF4, or Garrett-derived wastegated configurations—functions as the decisive determinant of thermal efficiency, payload capability, and tailpipe emission compliance. With commercial fleets facing escalating operating cost pressures and rigorous up-time requirements, the global wholesale replacement market for turbochargers matched to the Isuzu NKR 55 has transitioned from transactional spare parts trading to engineered, verifiable fleet lifecycle management.
Technical Insight: Original atmospheric (naturally aspirated) 4JB1 engines deliver approximately 57 kW (77 hp) and 175 N·m of torque. Upgrading or maintaining the factory-correct 4JB1-T forced-induction system elevates output to 74 kW (100 hp) and up to 240 N·m of torque at low RPM bands (1,800 - 2,200 rpm). This 37% surge in working torque directly eliminates engine lugging under full gross vehicle weight (GVW) ratings of 4,500 to 5,500 kg.
In high-altitude operating zones, such as the Andean corridor or African plateaus, atmospheric density drops result in severe combustion inefficiency for naturally aspirated setups. NKR 55 turbochargers engineered with high-precision nickel-alloy turbine wheels mitigate ambient barometric drops, maintaining stoichiometric air-to-fuel ratios, preventing thermal runaway in exhaust manifolds, and safeguarding cylinder head longevity.
Chinese Manufacturing Efficiency vs. Global Sourcing Parity
How state-of-the-art Chinese machining centers, automated dynamic balancing, and localized industrial clusters provide global wholesalers unmatched cost-performance advantages.
Precision Aerospace Castings
Modern Chinese tier-1 foundries employ vacuum investment casting for high-silicon ductile iron (SiMo) exhaust turbine housings capable of enduring continuous 850°C exhaust gas pulses without micro-cracking or dimensional bore deformation.
5-Axis Billet Impeller Machining
Moving beyond legacy cast aluminum wheels, cutting-edge Chinese facilities utilize custom 5-axis CNC-machined forged billet compressor wheels. The resulting blade profile lowers rotational inertia, sharpens spool response, and suppresses transient lag.
Automated VSR Dynamic Balancing
Core CHRA (Center Housing Rotating Assembly) cartridges undergo full-speed Vibration Sorting Rig (VSR) testing running up to 220,000 RPM. Residual vibration displacement is kept strictly beneath 0.5 mm/s, preventing journal bearing oil wedge rupture.
Scale Cluster Supply Chain
Guangzhou and the surrounding Pearl River Delta hardware networks integrate raw metallurgical casting, precision hardening, robotic balancing, seal manufacturing, and testing within a 50-kilometer radius, drastically reducing manufacturing cycle times.
ISO/TS 16949 Audited Control
Production runs adhere strictly to international automotive quality assurance protocols. Each turbo unit features serialized data tracking, pneumatic actuator stroke calibration, and 100% helium leak screening of internal bearing oil galleries.
Turbo Isuzu Elf NKR 55 Engineering Matrix & Indicative Wholesale Pricelist
Comprehensive technical and commercial comparison across turbocharger configurations applicable to Isuzu 4JB1 / 4JB1-T engines deployed on NKR 55 commercial chassis.
| Turbo Model / Series | OEM Reference Number | Core Specifications | Actuator / Wastegate Type | MOQ (Units) | Wholesale FOB Price Tier (USD) |
|---|---|---|---|---|---|
| RHF4H / 4JB1-T Std | 8972402101 / 8971371098 | K18 Inconel Turbine Wheel; 44mm Exducer; Standard Journal | Internal Wastegate, Pneumatic (0.85 - 1.05 Bar) | 10 - 50 pcs | $78.00 - $95.00 |
| RHB52 / NKR High-Boost | 8970385180 / 8970385181 | Cast 360-degree Thrust Bearing; Heavy Oil Film Cooling | Fixed Wastegate, Preset 1.15 Bar Calibrated | 20 - 100 pcs | $82.00 - $98.00 |
| RHF4 Billet Upgrade | 8972402101-B (Performance) | CNC 6+6 Milled Billet Wheel, Anti-Surge Housing, Ceramic Coated | Adjustable Billet Wastegate Actuator | 10 - 50 pcs | $105.00 - $125.00 |
| 4JB1-T CHRA Cartridge | CHRA-4JB1T-RHF4 | Complete Balanced Center Cartridge (VSR dynamic tested < 0.5g) | N/A (Cartridge Assembly Core) | 50 - 200 pcs | $38.00 - $48.00 |
| NKR55 Full Overhaul Kit | KIT-NKR55-TB01 | Includes Journal Bearings, 360° Thrust Collar, Piston Rings, O-Rings | Hardware & Copper Gaskets Included | 100 sets | $8.50 - $12.00 |
*Note: Wholesale prices are indicative for containerized or consolidated bulk purchases (FOB Guangzhou / Shenzhen / Ningbo ports). Actual contract prices vary based on raw material market index (nickel/copper), custom branded packaging requirements, and order volume tiers.
Localized Application Scenarios & Global Procurement Profiles
Analyzing structural usage profiles across diverse operational regions to optimize inventory planning for national distributors and commercial fleet operators.
Urban Intercity Logistics (Southeast Asia)
In congested freight arteries across the Philippines, Indonesia, and Vietnam, NKR 55 trucks endure relentless stop-and-go thermal cycling. High-frequency idling causes oil carbonization around turbo journal bearings. Fleet purchasers require turbos with reinforced twin-hydrodynamic oil clearances and optimized heat-soak dissipation.
Andean & High-Altitude Operations (South America)
Navigating steep gradients throughout Colombia, Peru, and Bolivia demands sustained peak boost pressures under oxygen-depleted atmospheres. Importers prioritize our modified RHF4 turbochargers featuring tighter wastegate calibration and high-hardness Inconel 713C turbine rotors resistant to overspeed rupture.
Severe Environment Mining & Agriculture (Africa)
Sub-Saharan vocational operations in Nigeria, Kenya, and Ghana face pervasive silica dust ingress and unpredictable diesel fuel sulfur levels. Fleets demand robust 360-degree bronze thrust bearings and twin dynamic piston ring seals on both compressor and turbine ends to permanently block lubricant blow-by.
Distributor Consolidations & Fast-Moving SKUs
For independent commercial vehicle aftermarket distributors, maintaining pre-packaged CHRA cartridges alongside complete bolt-on turbos provides maximum inventory elasticity, drastically lowering capital lock-up while serving both emergency roadside repairs and complete rebuild overhauls.
Emerging Technological & Regulatory Trends in Light Commercial Powertrains
How strict emissions standards, material science breakthroughs, and predictive maintenance are reshaping aftermarket supply chain strategies.
Advanced Electronic Actuation
Transitioning from basic pneumatic vacuum/pressure diaphragm actuators to stepper-motor-driven electronic actuators. This transition facilitates micro-second boost adjustment, precisely curtails transient particulates, and ensures compatibility with regional Euro IV and Euro V emissions retrofits.
Acoustic Attenuation & Thermal Barrier Coatings
Modern fleet buyers increasingly specify ceramic thermal barrier coatings (TBC) on turbine housings. Containing thermal energy within the turbine volute raises kinetic enthalpy for faster spooling while lowering under-hood temperatures by up to 45°C, extending rubber and harness service life.
Direct-to-Digital Supply Integration
Global fleet operations are adopting QR-coded serialized part tracking. Sourcing partners integrate real-time batch metallurgy reports, balancing harmonics logs, and automated dispatch notices directly into international enterprise resource systems.
Frequently Asked Questions: Technical & Bulk Purchasing
Direct answers for sourcing managers, spare parts distributors, and commercial fleet directors.
How can our procurement team verify compatibility between NKR 55 turbochargers and specific 4JB1 engine variants?
Verification requires confirming the engine code (4JB1, 4JB1-T, or 4JB1-TC), the vehicle VIN, and the exact turbo flange style (3-bolt vs 4-bolt turbine inlet). Naturally aspirated 4JB1 engines converted to turbocharging necessitate specific oil feed/drain lines and a matched oil pump to handle the added cooling circuit. Our Guangzhou engineering support team cross-references your vehicle VIN and casting codes against factory OEM databases before shipment confirmation.
What causes premature turbocharger failure on Isuzu Elf NKR 55 trucks in severe duty?
Empirical warranty analysis identifies three primary culprits: 1) Engine oil contamination or insufficient viscosity resulting in scoring of the bronze journal bearings; 2) Foreign particulate ingestion due to damaged intake ducting; and 3) Hot shutdowns without adequate idle cooldown, causing oil coking inside the center cartridge galleries. Our upgraded units incorporate 360-degree machined thrust bearings and hardened carbon-steel seal rings to provide greater resistance against transient lubrication starvation.
What are the minimum order quantities (MOQ), packaging, and sample policies for international distributors?
For standard fast-moving turbo units and CHRA cartridges, standard MOQ starts at 10 units per part number. We provide neutral export foam-cushioned packaging or customized private label branding for high-volume distributors. Sample evaluation units for dynamic bench testing and dimensional validation are available via expedited air freight (DHL/FedEx) prior to full container bookings.
How does Qicheng guarantee the balancing integrity of high-speed rotating components?
Each turbo CHRA undergoes a two-stage dynamic balancing procedure. Initial low-speed balancing is executed individually on the compressor and turbine wheels. Following complete cartridge assembly, the unit is subjected to high-speed VSR (Vibration Sorting Rig) balancing operating across the full operational spectrum up to 220,000 RPM. A dedicated balancing report graph is generated and linked to the unit's unique serial number plate.
What shipping terms, port clearances, and lead times apply for bulk orders?
We routinely execute shipments under FOB (Guangzhou, Shenzhen, Ningbo), CIF, and DDP terms depending on client infrastructure. Standard standing warehouse orders are dispatched within 48 to 72 hours. Custom production batches or private-label orders typically require a 15 to 25-day production window, backed by full commercial documentation, Certificates of Origin, and SGS or Bureau Veritas third-party inspection certifications upon request.
High-Performance Components: Group B Inventory
Complete your supply chain with genuine and high-grade OEM auxiliary components, filtration modules, crankshaft bearings, and cylinder heads.
Element Oil Filter Cartridge
Application: ISUZU NPR66 4HF1 Commercial
Unit Fuel Tank Sub Assembly
Application: ISUZU NKR55 4JB1 Chassis
Metal Set Crankshaft Standard
Application: Isuzu ZX330 4HK1 / 6HK1
Sensor Fuel Temperature
Application: ISUZU ZX200-3 4HK1 Diesel
Valve Exhaust Hardened
Application: ISUZU CX130B 4JJ1 Engine
Cylinder Head Assembly
Application: Isuzu ZX870-3 6WG1 / 6WF1
Screw Fastener High-Tensile
Application: ISUZU ZX330-3 6HK1T Systems
Valve Intake Precision Ground
Application: ISUZU ZX330 6HK1 / 4HK1 Series
