Featured Commercial Fleet Components & Assembly Replacements
Factory-verified, precision-machined OEM components calibrated for Isuzu 4HK1, 4JJ1, 6HK1, and 6WG1 heavy-duty powertrain assemblies.
Isuzu NQR 90: Global Industrial Footprint & Powertrain Heritage
Analyzing the engineering parameters of the 9.5-ton Gross Vehicle Weight (GVW) medium-duty benchmark and its cross-sector deployment across transcontinental logistical corridors.
9,500 kg GVW Structural Paradigm
The NQR 90 series represents the high-payload threshold of the world-renowned Isuzu N-Series (Elf) chassis family. Engineered specifically to bridge the operational gap between light delivery trucks and medium-duty freight haulers, the platform leverages high-tensile hot-rolled C-channel chassis framing with a tensile yield strength rating of 440 MPa, supporting extreme mechanical flexion and heavy municipal superstructure distribution.
- Nominal Gross Weight9,500 kg (20,940 lbs)
- Front Axle Capacity3,100 kg Reverse Elliot I-Beam
- Rear Axle Capacity6,600 kg Full-Floating Banjo
- Chassis Frame Section Modulus195 cm³
4HK1-TCS Powertrain Architecture
At the core of the NQR 90 is the Isuzu 4HK1-TCS inline-4, 5.193-liter direct-injection turbocharged diesel engine. Utilizing a high-pressure common rail injection system operating at up to 1,800 bar, the unit develops 140 kW (190 PS) at 2,600 RPM and 510 Nm of torque across a flat band between 1,600 and 2,600 RPM. This engine platform shares substantial architecture with Hitachi medium excavators (such as the ZX200 and ZX210), streamlining fleet parts procurement.
- Displacement / Layout5,193 cc / Inline 4-Cylinder
- AspirationVNT Turbocharger + Intercooler
- Bore x Stroke115 mm x 125 mm
- Compression Ratio17.5:1
B2B Fleet Standardization Value
For global logistics enterprises, mining consortiums, and national distributors, deploying the NQR 90 minimizes operational overhead through interchangeability. Commonality between the NQR 90 and heavy construction machinery components—including common injector nozzle assemblies, cylinder head bolts, oil filtration modules, and sensor relays—substantially reduces spare inventory carry costs across multi-tier regional maintenance depots.
- Transmission MatchIsuzu MZZ-6F 6-Speed Manual / AMT
- Service Interval20,000 km Operational Duty Cycle
- Braking SystemFull Air Drum with Dual Circuits
- Emissions Tier CoverageEuro III / IV / V / VI Calibration
Technological Transformation of the Medium-Duty Commercial Fleet Sector
Emerging paradigms across decarbonization, digital diagnostics, telematics-integrated preventative maintenance, and the total cost of ownership (TCO) lifecycle equation.
SCR & DPD Aftertreatment Maturation
The transition from Euro III/IV to Euro V and Euro VI standards in global logistics hubs has revolutionized exhaust gas recirculation and downstream purification. Modern NQR 90 platforms integrate Diesel Particulate Diffusers (DPD) with Selective Catalytic Reduction (SCR) dosing units. Precision control over diesel exhaust fluid (DEF/AdBlue) dosing ensures adherence to particulate matter (PM) and NOx limits while sustaining low specific fuel consumption figures under maximum payload gradients.
MIMAMORI Telematics & CAN-Bus Telemetry
Modern fleet operations no longer operate on reactive replacement. The integration of Isuzu's MIMAMORI system connects directly to the 4HK1 Engine Control Module (ECM) via CAN-Bus SAE J1939 protocols. This continuous digital link monitors injection rail variance, exhaust backpressure, brake lining wear rates, and fuel flow kinetics in real time, triggering wholesale parts replacement orders before catastrophic component failure occurs on long-haul transit routes.
TCO Optimization via Precision Spares
Direct procurement of genuine and Tier-1 certified components represents the single greatest lever in decreasing Total Cost of Ownership (TCO) across 500,000 km lifecycle horizons. By utilizing OEM-spec king pin kits, silicon-molybdenum cylinder head assemblies, release bearings, and balanced clutch discs, fleet maintenance controllers eliminate unplanned downtime which carries up to 4x the financial cost of routine scheduled maintenance overhauls.
Isuzu NQR 90 Operational Benchmarks
Standardized engineering data points recorded across continuous field deployments in demanding global logistics and municipal sectors.
Challenging Operating Environments & Tailored Configurations
How fleet operators engineer the NQR 90 chassis to withstand distinct geographic, thermal, and mechanical stresses across five core commercial verticals.
Sub-Zero Cold Chain Transit
Operating throughout Nordic, North American, and Eastern European winters, refrigerated NQR 90 units demand auxiliary high-output alternator assemblies (such as the 1-81200479-0 class) and high-filtration multi-stage fuel heaters to prevent diesel paraffin crystallization in sub-minus 35°C ambient temperatures. Thermal stability in rubber suspension bushings and high-resilience front flex hoses ensures braking fluid dynamics remain within nominal pressure gradients without pressure line stiffening or micro-fracturing.
Equatorial High-Dust Mining

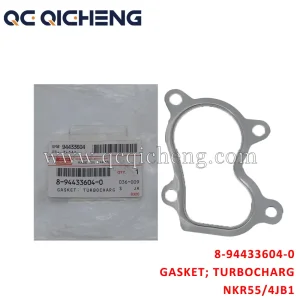

In open-cast mining service and remote infrastructure projects across Australia, Latin America, and Sub-Saharan Africa, fine abrasive dust compromises air induction and fuel delivery. NQR 90 lubrication systems rely on dual-stage fuel filter kits (5-87610157-0) and reinforced turbocharger gaskets (8-94433604-0). Suspension integrity depends on heavy-duty king pin repair kits (5-87610304-0) to counteract constant high-amplitude vibrational shocks across unpaved haul roads.
Stop-and-Go Urban Distribution
Metropolitan intra-city last-mile distribution subjects the driveline to severe thermal cycling. City delivery variants encounter repeated engagement cycles that place massive strain on clutch discs (8-97556778-0) and release bearings (1-87611004-0). Heat-dissipating clutch linings, precision-torqued connecting rod bearings (8-97616358-0), and high-integrity stabilizer bar bushings (8-94342187-0) eliminate chassis roll and maintain driveline equilibrium during constant cornering.
Municipal Utility & Fire Support
Specialty configurations—including municipal compactor trucks, aerial lift platforms, and rapid-intervention brush fire rigs—utilize transmission-mounted Power Take-Off (PTO) units continuously. Sustained stationary engine idling under load requires maximum cooling efficiency, reinforced cylinder head assemblies (1-11110941-5), and high-integrity gear case gaskets (8-98061423-0) to safeguard hydraulic pressure lines against engine bay thermal soak and fluid leakage.
B2B Wholesale NQR 90 Spares Pricing & Order Matrix
Standardized procurement schedule for commercial fleet parts, complete engine overhauls, and routine service consumables. Volume quotes reflect MOQ requirements, packaging specifications, and customs HS code indexing.
| OEM Part Number | Description / Specification | Engine / Platform Compatibility | Standard MOQ | Quality Grading | Target Lead Time |
|---|---|---|---|---|---|

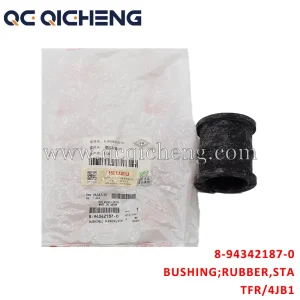

| 8-94342187-0 | Bushing, Rubber Stabilizer Bar | Isuzu TFR / NKR / NQR (4JB1, 4HG1) | 100 Units | OEM Genuine / Tier-1 | 3 - 5 Days Ex-Stock |
| 1-87611004-0 | Bearing, Clutch Release | Isuzu CYZ51Q / F-Series (6WF1T, 6HK1) | 20 Units | OEM Grade | 3 - 7 Days Ex-Stock |
| 5-87610157-0 | Fuel Filter Assembly (Multi-Stage) | Isuzu NPR75 / NQR90 (4HK1) | 50 Units | Original Standard | Immediate Dispatch |

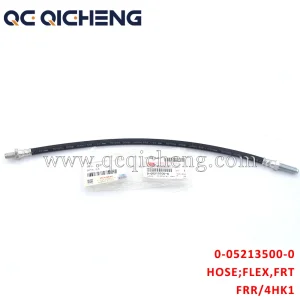

| 0-05213500-0 | Hose, Front Flexible Brake Line | Isuzu FRR / FSR / NQR (4HK1) | 50 Units | DOT / SAE Certified | 5 - 8 Days |
| 1-11110941-5 | Head Assembly, Cylinder Bare/Complete | Isuzu 6WG1 / 6WF1 / Hitachi ZX870-3 | 1 Unit | Heavy-Duty Iron Casting | 7 - 10 Days |

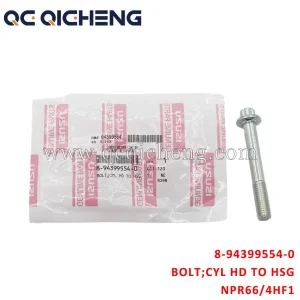

| 8-94399554-0 | Bolt, Cylinder Head to Crankcase | Isuzu NPR66 / NQR / FRR (4HF1, 4HK1, 6HK1) | 200 Units | Grade 12.9 High-Tensile | Immediate Dispatch |
| 5-87610304-0 | King Pin Service Kit (Front Axle) | Isuzu NKR / NPR / NQR (4HG1, 4HK1) | 10 Sets | Case-Hardened Steel | 3 - 5 Days |
| 8-97556778-0 | Clutch Disc Assembly (325mm / 350mm) | Isuzu FRR / FTR / NQR (6HH1, 4HK1) | 15 Units | Cerametallic / Organic | 5 - 7 Days |
Need a Consolidated Container Quote for NQR 90 Spares?
We supply fleet operators, regional distributors, and municipal procurement bodies with direct ex-factory pricing, full bill-of-lading consolidation, and OEM cross-referencing support.
Technical & Procurement FAQ for Fleet Engineers
Addressing common operational questions regarding part number supersessions, engine cross-compatibility, and logistics workflows.
How does the 4HK1 engine in the NQR 90 differ from that in Hitachi ZX200 excavators?
While both share the core 5.2L engine architecture—including the identical cylinder block casting, crankshaft geometry, connecting rods, and piston dimensions—their calibration and auxiliary configurations differ. Industrial excavator variants employ steady-state mechanical/electronic governors tuned for continuous hydraulic load curves, whereas commercial vehicle NQR 90 models use automotive-variable throttle maps, different turbocharger housings (VNT vs. wastegate), distinct flywheel bell housing interfaces, and 24V commercial alternator mounts.
How can buyers prevent fitment errors caused by superseded part numbers?
Isuzu frequently updates part numbering due to metallurgical enhancements or supplier transitions (e.g., transitioning from an 8-97xxxxxx to an 8-98xxxxxx prefix). We cross-reference your vehicle's 17-digit VIN, chassis production code, and engine serial number against the official Isuzu Worldwide EPC system prior to shipping. This verification step ensures complete compatibility with the existing wiring harness, mounting flanges, and sensor inputs.
What is the standard warranty coverage and QC inspection workflow for critical items?
Every structural and rotating part—including cylinder heads, release bearings, and connecting rod bearings—undergoes comprehensive pre-shipment quality control. This includes coordinate measuring machine (CMM) dimensional checks, ultrasonic crack testing, and surface finish analysis. Engine assemblies and high-wear transmission items are protected by a standard 12-month unlimited-kilometer replacement warranty against manufacturing anomalies.
What shipping modalities are used for mixed consolidated commercial fleet orders?
For routine maintenance schedules, we provide consolidated 20-foot and 40-foot full container load (FCL) packing with moisture-barrier wrapping and export wooden crating. For emergency vehicle-off-road (VOR) situations, our central warehouse in Guangzhou coordinates air-express dispatch via DHL, FedEx, or dedicated air freight charters, ensuring standard delivery to regional international hubs within 72 to 96 hours.
Industrial Excavator & Commercial Truck Spare Components
High-durability engine gaskets, leak-off tubes, connecting rod bearings, and electrical charging systems for Isuzu and Hitachi applications.
