OEM Industrial & Fleet Ecosystem Technical Whitepaper

High-Quality Isuzu NKR 66 Supplier & Pricelist

Engineering-grade procurement analysis, powertrain architectures (4HF1/4HG1), global lifecycle logistics, and certified tier-1 spare parts inventory.

Direct Component Replacements

Verified Heavy Equipment & Engine Assembly Stock

Calibrated components tested to original factory tolerances, cross-referenced for continuous duty cycles across Isuzu and Hitachi applications.

Powertrain Architecture

Engineering Blueprint: Isuzu NKR 66 Platform Analysis

An exhaustive mechanical breakdown of the NKR 66 light commercial vehicle platform, primary engines (4HF1 / 4HG1), and mechanical fuel distribution.

4HF1 & 4HG1 Mechanical Resilience

The NKR 66 chassis relies on the naturally aspirated 4.3L 4HF1 and 4.6L 4HG1 overhead camshaft direct-injection engines. Designed without complex electronic common-rail dependencies in initial releases, these powerplants utilize mechanical inline injection pumps capable of continuous operation in high-sulfur fuel environments.

Driveline & MYY-5T Transmission

Torque is managed via the heavy-duty 5-speed synchromesh gearbox engineered with oversized needle bearings and forged synchronizer rings. The drivetrain pairs with a full-floating hypoid rear differential designed to support axle loads reaching up to 4,200 kg under severe industrial distribution profiles.

Thermal Dynamics & Cooling Cycles

The cooling network combines a multi-blade viscous fan clutch with high-volume water pump circulation (1-87311001-0 baseline architecture) ensuring cylinder head temperature stasis during intense stop-start intra-urban delivery and high-load rural incline hauling operations.

Engine / Platform Metric 4HF1 Core Specification 4HG1 Core Specification Maintenance Threshold
Displacement & Bore/Stroke 4,334 cc (112 mm × 110 mm) 4,570 cc (115 mm × 110 mm) Factory Clearance: 0.050 - 0.075 mm
Rated Power Output 116 PS (85 kW) @ 3,200 RPM 121 PS (89 kW) @ 3,000 RPM Dyno tolerance: ±3%
Peak Torque Generation 285 Nm @ 1,800 RPM 325 Nm @ 1,800 RPM Transmission input limit: 450 Nm
Compression Ratio 19.0:1 Direct Injection 19.0:1 Direct Injection Min Service Limit: 2.2 MPa
Valve Train Configuration Single Overhead Camshaft (SOHC) Single Overhead Camshaft (SOHC) Tappet Gap: 0.40 mm (Cold Intake/Exhaust)
Global Commercial Landscape

Global Industry Footprint & Heavy Fleet Economics

How fleet directors and commercial equipment operators across 120+ countries maintain operational profitability using standardized Isuzu components.

120+
Export Destinations

Active supply chain channels across Africa, Southeast Asia, Latin America, and Eastern Europe maintaining identical fitment standards.

100K+
Warehouse SKUs

Comprehensive parts warehousing covering diesel engine blocks, transmission gears, electronic relays, and fuel distribution circuits.

$15M
Standing Asset Inventory

Immediate stock allocation minimizing Mean Time To Repair (MTTR) for commercial haulers and excavator attachments.

99.4%
Fitment Accuracy

Pre-shipment verification against EPC (Electronic Parts Catalog) engineering systems via model, frame, and casting numbers.

Deployed Operational Scenarios

Mission-Critical Deployment Scenarios

The NKR 66 architecture forms the core chassis for multi-sector utility vehicles. Real-world field duty configurations demand strict material integrity.

Municipal Logistics & Cold-Chain

Equipped with thermal PTO compressors, NKR 66 fleets handle intra-city temperature-controlled distribution. Constant low-speed idle demands reinforced connecting rod bushings (8-97383066-0) and optimized timing chain tensioning levers to eradicate chain slap.

Mining Support & Remote Service Rigs

Serving in harsh, remote mining territories across Australia, Latin America, and Sub-Saharan Africa as service lubrication units and fuel transport vehicles. Environments require multi-stage air compressor cylinder kits (1-19163048-0) and resilient vibration-dampened shift linkages.

Rural Agricultural & Forestry Transport

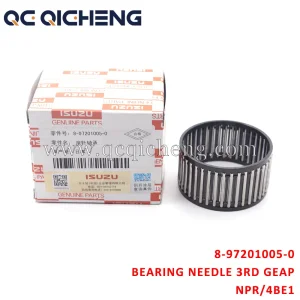

Unpaved roadways impose shock-load stresses through transmission gear assemblies. Utilizing case-hardened 3rd gear needle bearings (8-97201005-0) and high-friction synchronizer rings (8-97061752-0) prevents gearbox lockups under deep terrain modulation.

Quality Protocol & Standards

Strict Metallurgy & Compliance Validation

Every SKU distributed under the Qicheng framework adheres to ISO 9001 and IATF 16949 certified quality metrics. We eradicate counterfeit failure modes.

Coordinate Measuring Machine (CMM) Testing

Dimensional inspections verify geometric tolerance within ±0.005 mm on critical items such as cylinder heads, connecting rods, and crankshaft bearing saddles, preventing premature hydrodynamic oil film breakdown.

Metallurgical & Hardness Verification

Gear tooth surfaces and needle bearings undergo Rockwell and Brinell hardness testing (HRC 58-62 on load-bearing contact points) paired with case-carburizing analysis to secure fatigue thresholds under extended torque.

Complete Export Compliance & Tracking

Shipments include complete commercial documentation, Certificate of Origin (CO), and customs clearance data sets. Packaging includes heavy-gauge anti-corrosive VCI wrapping to guarantee zero surface oxidation during oceanic transit.

Future-Proofing Heavy Assets

Lifecycle Engineering & Strategic Transition Roadmap

Navigating global carbon restrictions, digital diagnostic upgrades, and long-term remanufacturing life cycles for legacy diesel fleets.

Phase 1: Precision Remanufacturing

Extending existing NKR 66 and 4HF1/4HG1 asset cycles by deploying precision liner kits, oversized piston sets, and balanced valve guide geometries (5-11721016-0), delivering factory-spec compression ratios at a fraction of total vehicle replacement costs.

Phase 2: Hybrid Sensorization & Telematics

Integrating modern speed revolution sensors (8-97606943-0) and pressure transmitters within legacy diesel architectures, feeding real-time operational data into IoT fleet management suites to predict bearing wear before catastrophic catastrophic seizure occurs.

Phase 3: Clean Fuel Adaptation

Field conversions supporting low-carbon alternative biofuels (HVO100 and B20 blends). Ensuring fuel lines, injector seals, and filtration assemblies withstand high solvent conditions without elastomer deterioration or high-pressure spray variations.

Procurement Intelligence

Frequently Asked Technical & Sourcing Questions

Clear, definitive technical answers addressing parts interchangeability, production validation, lead times, and global shipping warranties.

What are the key technical distinctions between the Isuzu 4HF1 and 4HG1 engines in NKR 66 models?
While both belong to the Isuzu 4H cylinder block family and share identical external mounting footprints, the 4HG1 features an enlarged cylinder bore of 115 mm (compared to the 112 mm bore of the 4HF1), increasing displacement from 4.33L to 4.57L. Piston crown profiles, cylinder liners, and fuel injection nozzle hole sizing differ. When ordering overhaul kits, always specify the engine serial code stamped on the cylinder block to avoid improper ring-to-bore clearances.
How do you verify part fitment across mixed fleets of Isuzu trucks and Hitachi excavators?
Because Hitachi heavy construction equipment (such as the ZX130, ZX200, and ZX450 series) utilizes genuine Isuzu industrial diesel powerplants (4JJ1, 4HK1, 6HK1, 6WG1), parts frequently cross-reference between chassis codes. Our engineering team utilizes internal EPC database algorithms. By verifying your machine model, casting number, and OEM part number (e.g., 8-97945070-0 timing tensioners or 8-97606943-0 speed sensors), we confirm 100% mechanical and electrical fitment before export.
What is your policy on standing stock availability and international express delivery?
Qicheng holds over $15 million in standing stock across 10 central distribution hubs, encompassing 100,000+ specialized SKUs. For critical machine-down situations (AOG/Breakdown), emergency orders dispatch within 24 to 48 hours via DHL, FedEx, or air cargo. Full container load (FCL) sea freight orders for regional warehouse restocks are dispatched from Guangzhou within 7 to 10 days of order finalization.
Are replacement parts certified under international quality assurance standards?
Yes. All manufactured components are produced under ISO 9001:2015 and IATF 16949 certified quality management systems. Material composition, metallurgical hardness (Rockwell C), and surface finishes are bench-tested against OEM blueprints. Full inspection reports, Certificates of Conformity, and mill test certificates can be provided upon commercial request.
How can fleet operators obtain a complete wholesale pricelist for NKR 66 maintenance items?
Procurement officers and distributor representatives can request our complete master pricelist through our digital portal or via direct sales contact. Our pricing models feature tiered volume discounting, consolidated container packing options, and localized warranty protections designed specifically for commercial distributors and large fleet service depots.
Powertrain, Sensor & Fluid Control Components

Genuine-Spec Precision Components & Ancillaries

Direct-fit synchronizers, high-pressure fuel lines, temperature controllers, and precision injection assemblies.
