Isuzu NPR 4BB1

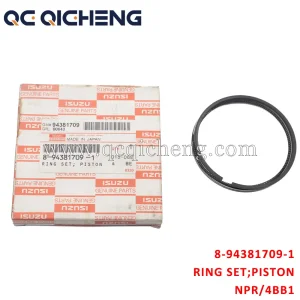

RING SET PISTON (8-94381709-1)
High-compression thermal barrier rings engineered for Isuzu 4BB1 light/medium commercial chassis.
Request Quotes & Specs
Tier-1 Verified Components
Featured Heavy-Duty & Medium-Duty Powertrain Spares
Immediate stock allocation for Isuzu NPR, NKR, FRR, and ZX excavation platforms featuring genuine metallurgy and micro-tolerance adherence.
TCM 4LB1
SENSOR THERMO (8-97063301-0)
Calibrated coolant thermo-resistive sensor ensuring closed-loop ECU temperature feedback.
Request Quotes & Specs
SY135 4JJ1
PIPE INJ NO 2 (8-98043684-0)
High-pressure common-rail fuel feed line with anti-fatigue flare seating for 4JJ1 power plants.
Request Quotes & Specs
NKR 4HF1

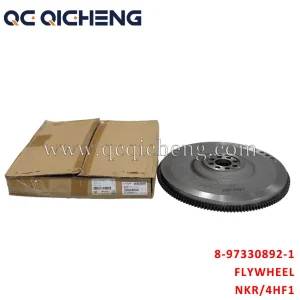

ENGINE FLYWHEEL (8-97330892-1)
Dynamically balanced ductile iron flywheel designed to handle heavy clutch engagement inertia.
Request Quotes & Specs
ZX450 6WG1

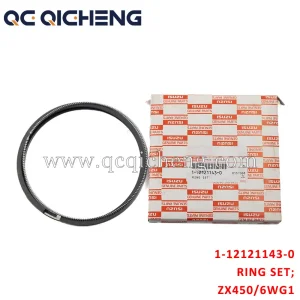

RING SET PISTON STD (1-12121143-0)
Heavy excavation grade piston ring kit with chromium-ceramic coating for extreme load duty cycles.
Request Quotes & Specs
4HK1 / 6HK1

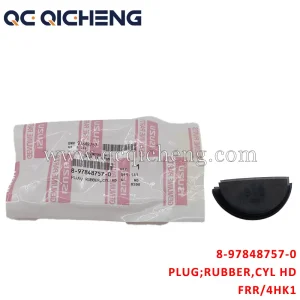

PLUG RUBBER CYL HD (8-97848757-0)
High-temp fluoropolymer cylinder head blind plug, resistant to synthetic engine oil degradation.
Request Quotes & Specs
FRR 6HH1-1

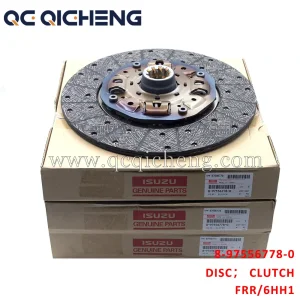

DISC CLUTCH ASSEMBLY (8-97556778-0)
Heavy-duty copper-ceramic friction disc for Isuzu FRR commercial trucks operating in urban stop-go traffic.
Request Quotes & Specs

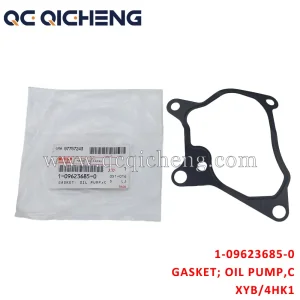

4HK1 / 6HK1 XYB
GASKET OIL PUMP C/BL (1-09623685-0)
Precision stamped elastomeric coated steel sealing gasket guaranteeing zero pressure drop at pump outlet.
Request Quotes & Specs
Commercial Vehicle Engineering Whitepaper
Navigating Isuzu Giga & FRR Powertrain Architectures
A technical analysis of metallurgical tolerances, mechanical stress thresholds, and Tier-1 supply chain ecosystems serving global fleet operators.
Executive Engineering Summary: Heavy Haulage vs. Medium Distribution
The operational dichotomy between the heavy-duty Isuzu Giga (C/E Series, VC61, VC66) and the medium-duty Forward FRR/FSR platforms lies in duty cycle harmonics and dynamic torsional loading. While Giga platforms rely on ultra-heavy 6UZ1-TCG51 (9.8L) and 6WG1-TCG52 (15.7L) platforms engineered for continuous torque outputs exceeding 2,060 N·m, FRR chassis leverage the 4HK1-TCS and 6HK1-TCN engines optimized for high cyclic braking, transient acceleration, and thermal thermal cycling in metropolitan corridors. Procuring components across these families requires distinct metallurgical validations and precise verification of cross-generational superseded part numbers.
Isuzu Giga Heavy Commercial (VC61 / VC66 / CYZ)
Designed for gross combination weights (GCW) spanning 45 to 100 metric tons. Critical failure vectors involve crankshaft journal galling, liner cavitation under high sulfur fuels, and intercooler core structural ruptures. Our Giga portfolio emphasizes micro-polished forged nitrided steel crankshafts, hardened induction cylinder liners, and high-pressure common rail assemblies calibrated for Denso HP0 and HP4 fuel systems.
Isuzu Forward FRR (Medium Duty 10-16T GVW)
The FRR platform represents the logistical backbone of regional freight and municipal services. Operating frequently in particulate filter (DPF) regeneration zones, FRR 4HK1 and 6HK1 powerplants suffer accelerated thermal breakdown of valve stem seals and EGR cooler clogging. Qicheng supplies laser-welded stainless steel EGR heat exchangers, dual-stage silicone engine mountings, and balanced clutch pressure plates engineered for stop-go fatigue resistance.
Industrial Powertrain Cross-Platform Symbiosis
Because Isuzu industrial diesel architectures are shared across commercial trucks and heavy excavation equipment—such as the 6WG1 found in both the Isuzu Giga CYH and Hitachi ZX450-3/ZX470-5—our catalog eliminates redundant procurement channels. Fleet managers obtain identical OEM-level castings, sensors, and structural seals regardless of whether the engine powers a transport tractor or an open-pit hydraulic shovel.
| Platform / Engine Family | Displacement & Bore/Stroke | Common Commercial Application | Critical Metallurgy & Material Spec | OEM Cross-Reference Focus |
|---|---|---|---|---|
| 6WG1-TC (Tier 3 / Stage IIIA) | 15.681L / 147 × 154 mm | Isuzu Giga EXR/EXZ, Hitachi ZX450/470 | Chromium-Molybdenum Alloy Crank (42CrMo4) | 1-11510093-5, 1-12121143-0 |
| 6UZ1-TCG50 (Euro V / China V) | 9.839L / 120 × 145 mm | Isuzu Giga VC61 Concrete Mixer / Dump | Nodular Cast Iron Piston with Salt-Core Gallery | 8-98014831-0, 1-09623685-0 |
| 6HK1-TCS / 6HH1 | 7.790L / 115 × 125 mm | Isuzu Forward FRR, FVR, ZX200-3/ZX330 | Induction-Hardened Pin Journals, Multi-Layer Steel Gaskets | 8-97556778-0, 8-97848757-0 |
| 4HK1-TCH / TCS | 5.193L / 115 × 125 mm | Isuzu FRR / NPR / NQR, Hitachi ZX120/200 | Laser-Cladded Valve Seat Inserts, DLC Injector Needles | 1-09623462-0, 8-98043684-0 |
Chinese Manufacturing Precision
Guangzhou Supply Chain Ecosystem: Direct Factory Advantages
Why global heavy transport contractors are consolidating their Isuzu commercial parts procurement through specialized Pearl River Delta logistical centers.
Sub-Assembly Integration & Qingling Supply Tie-Ups
China’s longstanding joint-venture ecosystem (Qingling Isuzu Motors in Chongqing and Isuzu Qingling Motors) has nurtured an elite tier of Tier-1 and Tier-2 component manufacturers. These factories operate with identical tooling dies, automated Japanese CNC gear-grinding machinery, and casting sand formulas required for original assembly. Qicheng leverages this ecosystem directly, eliminating the multi-layered markups of traditional Japanese trading houses while delivering verified metallurgical integrity.
Micron-Tolerance Coordinate Measurement (CMM)
Every critical component—from piston rings (8-94381709-1) to crankshaft thrust bearings (1-11510093-5)—undergoes optical and physical batch inspection in our Guangzhou inspection hub. Using coordinate measuring machines (CMM) calibrated to DIN EN ISO 9001:2015, we verify roundness tolerances within 0.002 mm, surface roughness (Ra) down to 0.15 µm on critical friction tracks, and harness hardness through Rockwell testing rigs before export approval.
Centralized Consolidations & Port Proximity
Operating out of Guangzhou’s Zhuji International Machinery Center places our 100,000-SKU central warehouse 45 minutes from Huangpu Port and two hours from Shenzhen/Hong Kong international maritime hubs. By unifying air-freight hotlines for emergency breakdowns with FCL sea-freight containers for routine fleet replenishment, Qicheng reduces global lead times by an average of 40% compared to fragmented suppliers.
100,000+
Cataloged Active SKUs
120+
Export Destination Ports
$15M
Guangzhou Standing Inventory
99.85%
Initial Fitment Accuracy
Procurement & Governance Standard
Global Procurement Needs: Compliance, Traceability & Risk Mitigation
How corporate fleet directors, open-cast mines, and logistics conglomerates manage multi-brand spare parts lifecycles while ensuring stringent regional homologation.
Regulatory Compliance: Euro III through Euro VI & EPA Tier 4F
Procuring diesel powertrain components demands granular attention to regional environmental protocols. An Isuzu FRR operated in the European Union or North America requires emissions sensors (such as NOx sensors, exhaust gas pressure transducers, and particulate filters) capable of passing rigorous OBD-II threshold checks. Conversely, mining operations throughout Central Africa, Latin America, and Southeast Asia often run mechanical Euro II or Tier 3 platforms requiring sulfur-resistant injector tips and robust fuel water-separators. Qicheng provides regional-specific component calibration, ensuring your logistics fleet avoids catastrophic limp-mode activation or customs seizure due to non-compliant hardware.
SOPs for Enterprise Cross-Border Supplier Onboarding
Institutional procurement teams require audited financial standing, anti-corruption compliance, and clear chain-of-custody documentation. We provide verified Certificate of Origin (Form E, CO, Form A) documentation, Mill Test Certificates (MTC) for structural forged items, and full material data safety sheets (MSDS) for chemical and hydraulic seal units. With pre-clearance documentation workflows, Qicheng streamlines customs formalities across APMT, DP World, and regional dry port terminals worldwide.
Cross-Referencing Superseded Part Numbers
Isuzu regularly updates component part numbers to reflect minor tooling modifications or supplier updates. For example, camshaft angle sensors (8-98014831-0) and oil pump gaskets (1-09623685-0) often exhibit three or four historical catalog numbers. Our internal digital EPC database matches your vehicle VIN, engine serial number (ESN), and equipment build date to guarantee 100% backward compatibility.
Packaging, VCI Preservation & Sea-Freight Protection
Corrosion during marine transit can render bare metal parts useless before installation. High-carbon flywheels (8-97330892-1) and ground crankshaft journals (1-11510093-5) are preserved with volatile corrosion inhibitor (VCI) polymers, shrink-wrapped in moisture-barrier aluminum foil, and secured in fumigated heavy timber crates engineered to withstand multi-port transshipment.
Total Cost of Ownership (TCO) Rationalization
Fleet owners cannot afford unexpected downtime caused by sub-par generic parts, nor can they justify exorbitant OEM dealer retail premiums on mature platforms. By providing tiered component options—including Genuine OEM, Tier-1 OE Supplier (e.g., Mahle, NPR, Daido, TBK), and Qicheng High-Duty Aftermarket—we help procurement directors optimize maintenance budgets without sacrificing mean time between failures (MTBF).
Operational Field Deployments
Localized Application Scenarios: Proven Reliability in Extreme Environments
Analyzing stress models, operational environments, and maintenance strategies for Isuzu Giga and FRR machinery across four diverse operational theatres.
Urban Cold-Chain & Express Freight (FRR Forward)
Operating Environment: Severe stop-start traffic, continuous PTO engagement for refrigeration compressors, extended idle cycles.
Vulnerable Components: Clutch assemblies, starter relays, dual-mass flywheels, water pump impellers.
Engineering Remedy: High-temperature ceramic friction discs (8-97556778-0) combined with heavy-duty silicone dampening cab mounts (8-97201839-3) to eliminate high-frequency chassis vibration.
Open-Pit Mining & Quarry Haulage (Isuzu Giga CYZ/EXZ)
Operating Environment: Unpaved haul roads, abrasive silica dust, 15% road gradients, 80-ton gross combination loads.
Vulnerable Components: Crankshaft main bearings, turbocharger compressor wheels, cylinder head rubber plugs.
Engineering Remedy: Heavy-gauge bimetal copper-lead journal bearings (1-11510093-5) and multi-layered viton valve covers and plugs (8-97848757-0) preventing silica ingress.
Tropical Infrastructure & Earthmoving (ZX Excavator Integration)
Operating Environment: Ambient temperatures exceeding 42°C, relative humidity above 90%, remote fuel dispensing.
Vulnerable Components: Fuel injection pipes, common-rail thermo sensors, oil pipe seals.
Engineering Remedy: Precision cold-drawn seamless fuel injection pipes (8-98043684-0) and specialized high-nitrile oil line gaskets (1-09623462-0) ensuring structural resistance to fuel surge pressures.
Municipal Refuse & Concrete Pumping (FRR & Giga VC61)
Operating Environment: Continuous auxiliary power take-off (PTO), severe low-speed thermal saturation, heavy side-loading.
Vulnerable Components: Crankshaft angle sensors, engine mounting rubbers, transmission front oil seals.
Engineering Remedy: High-flux Hall-effect crank angle sensors (8-97306601-2) immune to electromagnetic interference, paired with reinforced engine foot rubbers (1-53215172-0).
Future Industry Forecast
Technological Horizons: Commercial Vehicle Parts Transformation
Four disruptive macro-trends reshaping heavy diesel manufacturing, fleet telemetry, and circular spare-parts economics through 2030.
1. Remanufacturing & Circular Powertrains
Escalating raw material costs and corporate Scope-3 carbon mandates are driving rapid adoption of factory-reconditioned short-blocks, cylinder heads, and high-pressure pumps. Standardized sonic cleaning, laser powder deposition on worn crank journals, and OEM-spec remachining reduce lifecycle acquisition costs by up to 45% while preserving virgin-grade metallurgical integrity.
2. Predictive IoT Telemetry & Component Health
Modern Isuzu Giga and FRR platforms feature integrated CAN-bus telemetry interfacing with cloud ERPs. The procurement cycle is transitioning from reactive emergency maintenance to algorithmic predictive dispatch. Real-time temperature delta tracking across exhaust manifolds triggers automated replenishment for exhaust gaskets and sensors before catastrophic roadside breakdown occurs.
3. Ultra-Low Emissions & Hydrogen Internal Combustion
With the global shift toward Euro VIe, China VIb, and nascent hydrogen-fueled internal combustion engines (H2-ICE) co-developed by commercial truck consortia, the mechanical stress profile is escalating. Combustion pressures exceeding 220 bar and dry cylinder conditions require diamond-like carbon (DLC) coatings and silicon-infiltrated cylinder sleeves, currently being integrated into Qicheng’s advanced catalog.
4. Digital EPC Matching & Supply Chain Resilience
Manual catalog lookup is entirely obsolete. Modern logistics managers require real-time API integrations linking warehouse inventory with cross-border customs manifests. Qicheng utilizes proprietary AI cross-indexing that matches obsolete chassis numbers to current OE manufacturing runs in fractions of a second, preventing mis-shipment rates and unnecessary reverse-logistics overhead.
Technical & Commercial FAQ
Frequently Asked Engineering & Procurement Inquiries
Clear, highly actionable answers for fleet engineers, procurement specialists, and overseas distributor teams.
How do you guarantee fitment between Isuzu Giga (Japan vs. Qingling JV vs. Thai assembly) platforms?
Isuzu commercial vehicles manufactured across differing international assembly plants (Fujisawa, Japan; Chongqing Qingling, China; Samrong, Thailand) share core structural blocks but frequently vary in secondary auxiliaries, electronic wire harnessing, and mounting bracket geometry. To eliminate fitment risk, Qicheng requires either:
- The complete 17-character Vehicle Identification Number (VIN) / Chassis Code.
- The stamped Engine Serial Number (ESN) located on the engine cylinder block deck.
- The cast or stamped OEM part number on the failed unit.
Our Guangzhou technical team cross-checks these identifiers against dedicated Electronic Parts Catalogs (EPC), verifying whether the vehicle utilizes Japanese domestic market (JDM), Qingling JV, or European-export specifications before dispatch.
What are the mechanical distinctions between genuine Isuzu OEM, Tier-1 OE, and premium aftermarket parts?
Understanding component tiering allows fleet owners to balance cost and MTBF effectively:
- Genuine Isuzu OEM: Packaged in branded Isuzu boxes, identical to items distributed through dealership concessions. Produced either by Isuzu directly or contracted Tier-1 vendors (e.g., Mahle, TBK, Denso).
- Tier-1 OEM Supplier Brand: Sourced straight from the tier manufacturers that supply Isuzu’s production lines (e.g., NPR piston rings, Daido bearings, Zexel/Bosch injection pumps). Identical quality, metallurgical composition, and machining tolerances, but delivered in manufacturer packaging at 25-40% lower cost.
- Qicheng Heavy-Duty Aftermarket: Precision-cast or machined components produced by audited partner factories adhering to ISO/TS 16949 parameters. Recommended for mature fleets where OEM component replacement costs exceed the residual capital value of the commercial vehicle.
Why do Isuzu 4HK1/6HK1 engines experience premature camshaft angle sensor (8-98014831-0) degradation?
The camshaft and crankshaft angle sensors (8-98014831-0 and 8-97306601-2) on common-rail 4HK1/6HK1 engines are magnetic induction / Hall-effect sensors subjected to aggressive thermal cycling within the timing gear casing. Premature failure typically stems from:
- Thermal breakdown of internal copper winding insulation caused by soot-saturated engine oil and extended drain intervals.
- Electromagnetic signal distortion caused by metallic debris accumulation on the magnetic sensor probe tip.
- Micro-cracking of the plastic connector housing allowing oil mist to contaminate the pin terminals.
Qicheng supplies updated OEM-grade sensors utilizing heat-stabilized polyphenylene sulfide (PPS) shells, high-curie magnets, and gold-plated terminal pins to prevent transient voltage dropouts and false ECU diagnostic trouble codes (e.g., P0340 / P0335).
What export packaging protocols are implemented to prevent maritime corrosion and transit damage?
Maritime air is saturated with chloride ions, which cause severe oxidation on machined iron surfaces within 72 hours of exposure. Qicheng applies a strict 4-stage packaging protocol for all machined powertrain items (such as the 8-97330892-1 flywheel and 1-11510093-5 crankshaft kit):
- De-greasing & Inhibitor Dip: Surface treatment with long-acting petroleum sulfonate anti-rust oil.
- VCI Wrapping: Enclosure within Volatile Corrosion Inhibitor (VCI) molecular barrier plastic bags that emit odorless protective vapors.
- Hermetic Seal: Vacuum heat-sealing in puncture-resistant poly-film.
- Crating: High-density, fumigated plywood cases with internal shock-absorbing polystyrene bracing, banded with structural steel strapping.
How do you assist international procurement teams with customs classification and duties?
Every invoice and packing list generated by Qicheng includes standardized 6-digit to 8-digit Harmonized System (HS) Tariff Codes verified by our certified in-house customs brokers. For example, engine flywheels are designated under HS 8483.50, piston rings under HS 8409.99, and electrical sensors under HS 9031.90. This standardized documentation prevents classification disputes, mitigates penalty risks during port inspections, and accelerates green-channel clearance at destination terminals.
Heavy Fleet Maintenance Inventory
High-Demand Commercial Spares & Structural Hardware
Precision engineered components ready for export dispatch from our central Guangzhou logistics center.
NRR 6BG1

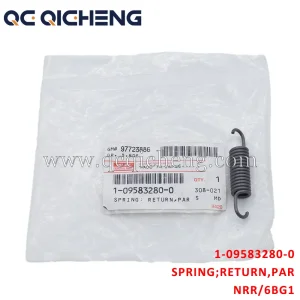

SPRING RETURN PAR (1-09583280-0)
High-tensile shot-peened return spring with anti-fatigue coating for commercial brake linkages.
Request Quotes & Specs
NKR77 4JH1

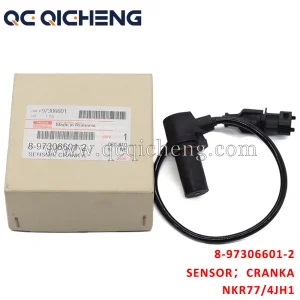

SENSOR CRANK ANGLE (8-97306601-2)
High-frequency magnetic sensor reading flywheel teeth positions for exact injection synchronization.
Request Quotes & Specs
ZX200-3 4HK1

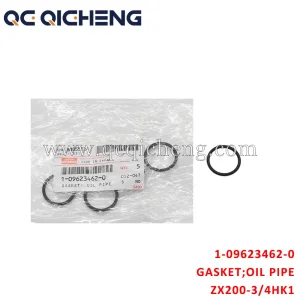

GASKET OIL PIPE (1-09623462-0)
Precision-engineered heat-resistant composite gasket preventing oil leaks at the turbo feed line.
Request Quotes & Specs
ZX470 6WG1
CRANKSHAFT METAL KIT (1-11510093-5)
Tri-metal alloy engine bearing shell set offering superior embeddability and anti-seize characteristics.
Request Quotes & Specs

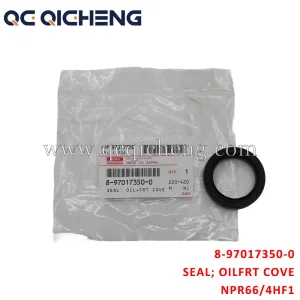

NPR66 4HF1
SEAL OIL FRT COVE T/M (8-97017350-0)
Rotary shaft oil seal with stainless-steel garter spring for manual transmission front input shafts.
Request Quotes & Specs
4HK1 / 6HK1 ZX330
CAMSHAFT ANGLE SENSOR (8-98014831-0)
OEM specification electronic sensor delivering accurate camshaft angle measurements to the engine ECU.
Request Quotes & Specs

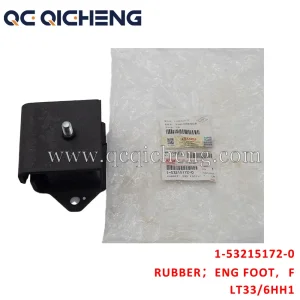

LT33 6HH1
RUBBER ENG FOOT FRT (1-53215172-0)
Vibration-dampening molded natural rubber engine mounting foot with bonded steel support plates.
Request Quotes & Specs

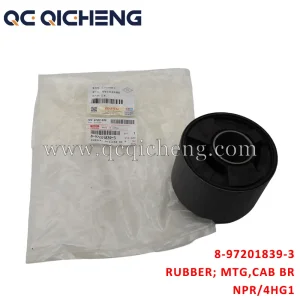

NPR 4HG1
CAB MOUNTING BRACKET (8-97201839-3)
Heavy elastomeric cabin bracket insulator isolating the driver cell from severe road harmonics.
Request Quotes & Specs
Direct Engineering Concierge
Consult with a Specialized Isuzu Powertrain Technical Specialist
Need verification on superseded numbers or complete fleet procurement packages? Submit your bill of materials (BOM), chassis VINs, or part numbers. Our bilingual engineering sales desk replies within 24 business hours.
