Featured Fast-Moving Isuzu Powertrain & Gearbox Spares
Essential drivetrain and auxiliary mechanical assemblies engineered to rigorous Japanese Industrial Standards (JIS). Guaranteed interchangeability for industrial equipment and medium-to-heavy duty commercial fleets.
Enterprise Procurement Demands in Heavy Commercial Transmissions
A macroeconomic analysis of OEM transmission lifecycle costs, downtime risk mitigation, and supply chain resiliency across global logistics and heavy extraction industries.
Mean Time Between Failures (MTBF) Optimization
For multinational fleet operators managing Isuzu N-Series (Elf), F-Series (Forward), and Giga platforms, unpredicted gearbox failure translates to massive demurrage and revenue loss. Enterprise procurement teams no longer source on component price alone; they mandate verified case-hardening metallurgy (58–62 HRC), precision gear tooth crowning, and sub-micron surface micro-finishing to optimize transmission life expectancy beyond 800,000 kilometers.
Direct-to-BOM Traceability & Supercession Mapping
Cross-referencing superseded OEM codes represents one of the largest friction points in commercial vehicle maintenance. An Isuzu MYY-5T, MYY-6S, or MZZ-6U gearbox may undergo dozens of microscopic revisions over a five-year cycle—altering synchronizer cone tapers, internal spline backlash, or input shaft seal diameters. Modern enterprise suppliers must maintain unified relational databases linking engine families (such as 4JJ1, 4HK1, 6HK1, and 6WG1) to exact transmission variants.
Total Cost of Ownership (TCO) & Landed Economics
Procuring low-grade non-genuine replacement transmission gears often results in premature tooth spalling, bearing race micro-pitting, and casing destruction within 40,000 km of severe stop-start operation. Calculating true TCO requires factoring catastrophic failure risk into supplier evaluation. Factory-certified forged gear blanks, precision helical grinding, and genuine needle roller bearings yield up to a 64% reduction in annualized driveline service outlays.
Macro-Industry Engineering Solutions & Gearbox Failure Dynamics
Analyzing root-cause mechanics in severe-service Isuzu manual and automated transmissions, focusing on stress concentration, hydrodynamic lubrication breakdown, and synchronizer wear.
Synchronizer Assembly Taper Degradation
The synchronizer ring assembly in manual units such as the Isuzu MYY-5T and MLD-6Q represents the highest wear interface. The molybdenum or carbon-lined friction cones match speed between the gear wheel and shift hub during engagement. When substandard lubricants or excessive thermal loads degrade the dynamic coefficient of friction (μ), synchronizer teeth bounce on dog teeth, resulting in rapid chamfer round-off, audible gear clash, and catastrophic transmission lockout.
OEM Solution: Our precision-forged brass and carbon-sintered synchronizer rings utilize proprietary heat-dissipation grooves and exact DIN 5480 involute splines, restoring original shift kinetics and eliminating axial misalignments under high torque transitions.
Contact Fatigue & Pitch-Line Micro-Spalling
Continuous heavy haulage across rough terrain exerts extreme Hertzian contact pressure along the pitch line of countershaft and mainshaft gearsets. Inadequate carburizing depth or core toughness anomalies induce sub-surface shear stress, causing microscopic pitting that progressively flakes metal fragments into the oil sump. These circulating metallic particulates subsequently destroy input shaft needle roller bearings and scoring casing walls.
OEM Solution: We supply 20CrMnTi and premium chromium-molybdenum alloy steel gearsets subjected to multi-stage vacuum carburizing, sub-zero stabilization, and fine shot-peening, producing a compressive surface residual stress layer exceeding -800 MPa.
Isuzu Gearbox Bill of Materials (BOM) & Wholesale Price Matrix
Market benchmark pricing for genuine and premium OEM-grade Isuzu gearbox components. Unit rates reflect FOB Guangzhou container consolidated tiers for commercial fleets and rebuilders.
| Part Category / Component Name | Transmission Application | Target Engine Pairing | Material Specification | Lead-Time Tier | Indicative Price (USD) |
|---|---|---|---|---|---|
| Main Input Shaft Assembly | MYY-5T / MYY-6S | 4JJ1-TC / 4HK1-TCN | SNCM420 Carburized Steel | In Stock (24h) | $145.00 – $220.00 |
| Countershaft (Layshaft) Cluster Gear | MLD-6Q / MLD-6W | 6HK1-TCS / 6HH1 | 20CrMnMo Precision Forged | In Stock (24h) | $185.00 – $290.00 |
| 1st & 2nd Speed Synchronizer Hub Kit | MZZ-6U / MZZ-6W | 4HK1 / 6HK1-T | Sintered High-Carbon Brass | In Stock (24h) | $62.00 – $98.00 |
| Overdrive 6th Gear Mainshaft Wheel | MYY-6S | 4JJ1 / 4HK1 | SCM415 Case-Hardened | In Stock (24h) | $48.00 – $75.00 |
| Shift Fork Assembly (1st / 2nd) | MAL-6S / MAL-6U | 6WG1 / 6UZ1 | Ductile Cast Iron QT600 | In Stock (24h) | $38.00 – $64.00 |
| AMT Electro-Hydraulic Actuator Pack | Smoother-G / Smoother-Ex | 4HK1 / 6HK1 AMT | Integrated Solenoid Block | Ready to Airfreight | $420.00 – $680.00 |
| Main Transmission Case Housing | MYY-5T Front/Rear Shell | 4JJ1 / 4HG1 | Die-Cast Aluminum ADC12 | In Stock (24h) | $195.00 – $340.00 |
| Comprehensive Overhaul Gasket & Seal Kit | Universal Isuzu Trans Series | 4HK1 / 6HK1 / 6WG1 | Fluororubber (FKM) & Metal | In Stock (24h) | $35.00 – $68.00 |
*Note: Pricing subject to volume tier agreements, core exchange credits, and current alloy surcharge benchmarks. Contact engineering sales for formal tenders.
Technical Roadmap: Automated Manual Transmissions (AMT) & Hybrid Drivetrains
The operational evolution from pure unsynchronized crash-boxes to electronically supervised automated transmissions, and preparation for heavy hybrid commercial propulsion.
Isuzu Smoother-G & NEES Shift Integration
Modern Isuzu trucks increasingly replace conventional pedal-actuated dry clutches with New Electronic Ergonomic Shifting (NEES) and Smoother-G automated manual gearboxes. These hybrid-mechanical systems demand micro-second hydraulic solenoid response, ultra-precise stroke position sensors, and multi-disc oil-immersed wet launch clutches. Our inventory provides factory-calibrated solenoid valving and TCU-matched actuators that resolve slow-shifting or fault codes without complete transmission modular replacement.
Heavy Planetary & Hydrostatic PTO Assemblies
In heavy civil works and mining, Isuzu 6HK1 and 6WG1 engines deployed on Hitachi excavators (such as the ZX330, ZX450, and ZX870) transfer continuous power through high-capacity split-flow hydraulic transfer gearboxes and planetary reduction drives. Gear teeth inside these auxiliary drive heads endure shock loads up to 400% of nominal rating. We supply shot-peened planetary carrier sets, sun gears, and floating ring gears precision-cut to AGMA Quality Class 12 tolerances.
Electric Drive Axle & Dual-Motor Co-Axial Units
As municipal fleet emissions standards tighten worldwide, commercial platforms are adopting hybrid e-transmissions that integrate 800V permanent-magnet motors directly into the main gearbox housing. Our Guangzhou engineering hub collaborates with advanced transmission R&D partners to stock low-drag bearing sets, synthetic dielectric seals, and hardened high-speed planetary reduction gears capable of sustaining input motor speeds exceeding 14,000 RPM.
Localized Supply Chains, Quality Certification & Compliance Standards
Ensuring end-to-end metallurgical conformity, customs clearance facilitation, and localized field reliability across four primary continental markets.
North America & European Quality Assurances (IATF 16949 / DIN)
Supplying aftermarket distributors in the United States, Canada, and Western Europe necessitates compliance with IATF 16949 quality management systems and DIN ISO 286 dimensional tolerance certifications. Every batch of Isuzu-compatible gears, shafts, and casing components undergo strict optical coordinate-measuring machine (CMM) verification, magnetic particle crack detection (MPI), and ultrasonic testing to verify structural grain boundaries before export packing.
Customs Compliance: All shipments come with comprehensive Harmonized System (HS) code documentation (Chapter 8708.40 Gear Boxes and Parts), simplifying border validation, preferential duty claims, and customs clearance.
Asia-Pacific, Latin America & African Fleet Realities
Tropical heat, extreme dust ingress, overloaded payload profiles, and inconsistent gear oil maintenance represent real-world operating environments in Southeast Asia, Sub-Saharan Africa, and Latin America. In these regions, stock standard seals quickly harden and fail, causing oil leakage and immediate seizure. We implement double-lip Viton (FKM) radial shaft oil seals with stainless-steel garter springs, ensuring dust exclusion and thermal resistance up to 200°C.
Logistical Support: Direct sea-air consolidated multimodal freight departures from Guangzhou and Shenzhen ensure remote mining operations in Chile, Indonesia, or Ghana receive emergency transmission rebuild kits within 72 to 96 hours of initial dispatch.

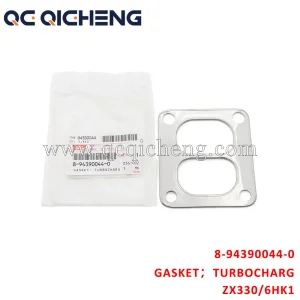

Complementary Precision Assemblies & Ancillary Components
High-integrity sensors, turbocharger connection interfaces, pneumatic hardware, and cooling systems designed to protect the engine-transmission powertrain loop.
Frequently Asked Questions (FAQ) on Isuzu Gearbox Procurement
Authoritative technical answers to common questions asked by supply chain managers, fleet engineers, and overhaul specialists regarding Isuzu commercial transmissions.
Q1: How can procurement teams guarantee exact fitment between Isuzu MYY-5T, MYY-6S, and MZZ-6U gearboxes?
Fitment confirmation requires verifying three distinct identifiers: the 10-digit OEM casting number stamped on the main bellhousing or transmission mid-case, the exact engine suffix (such as 4JJ1-TC vs. 4HK1-TCS), and the vehicle VIN or chassis plate code. Because internal gear ratios, spline tooth counts on the input shaft (typically 14, 21, or 24 teeth), and speedometer drive sensor gears change across production years, providing the full vehicle chassis number guarantees our engineering team matches the exact factory Bill of Materials (BOM).
Q2: What metallurgy and heat treatment standards are used for your Isuzu replacement gears and shafts?
All heavy-wear transmission gears, countershafts, and input shafts are precision-machined from forged 20CrMnTi or SNCM420 low-carbon alloy structural steels. Components undergo controlled atmosphere vacuum carburizing followed by oil quenching, producing a surface case hardness of 58–62 HRC while maintaining a ductile, shock-absorbing core hardness of 32–40 HRC. Tooth flanks are finish-ground using CNC Reishauer gear grinders to AGMA Class 11-12 standards, ensuring minimal gear whine and extended service life.
Q3: Can you supply genuine OEM parts as well as certified tier-one aftermarket alternatives?
Yes. We supply genuine Isuzu boxed components originating directly from Japanese and joint-venture manufacturing facilities, alongside certified OEM-tier equivalents produced by tier-one transmission suppliers. Every tier-one replacement part passes identical metallurgical and coordinate-measuring machine (CMM) testing, allowing fleet owners to balance budget targets with genuine mechanical performance.
Q4: How does Qicheng handle international export packing and ocean transit protection?
Transmission gears, synchronizer packs, and precision bearings are susceptible to marine corrosion caused by saltwater vapor and temperature fluctuations during multi-week ocean transit. We coat all bare steel components in military-grade rust-preventative oil, seal them in moisture-impermeable VCI (Volatile Corrosion Inhibitor) bags with desiccant packs, and house them in foam-cushioned, fumigated hardwood export crates compliant with ISPM 15 standards.
Q5: What are the standard lead times for emergency airfreight orders versus volume sea freight orders?
With over $15 million in standing inventory across our Guangzhou central operations and regional domestic distribution centers, fast-moving items like overhaul gasket kits, input shafts, bearings, and synchronizers ship within 24 hours of PO confirmation. For emergency downtime (Vehicle-Off-Road/VOR), door-to-door express airfreight reaches major international airports within 3 to 5 business days. Full container load (FCL) sea freight orders depart weekly via Guangzhou or Shenzhen ports.
