High-Priority Isuzu Powertrain & Hydraulic Integration Components
Direct stock supply verified against OEM blueprints, factory tolerances, and engine ECU calibration maps. Every component undergoes rigorous microscopic and ultrasonic dimensional qualification prior to international containerized shipment.
The Evolution & Architectural Supremacy of Isuzu 6-Cylinder Engines
In heavy civil infrastructure, open-pit mining, and continuous industrial operations, the inline six-cylinder (I6) configuration represents the mechanical pinnacle of primary and secondary reciprocal balance. When assessing commercial diesel suppliers, understanding Isuzu's thermodynamic and metallurgy advancements across its premier 6-cylinder families—specifically the 6HK1, 6WG1, 6UZ1, 6SD1, and legacy 6BG1—is imperative for engineering risk mitigation.
Isuzu 6HK1 Series (7.79L)
The standard powerhouse for mid-to-heavy earthmoving machinery, notably powering the iconic Hitachi ZX330, ZX350, and Case CX350 excavators. Equipped with a high-pressure common-rail injection system (1,800 to 2,000 bar) and variable-geometry turbocharging (VGT).
- Displacement: 7.790 cc (Bore: 115mm, Stroke: 125mm)
- Power Outputs: 177 kW to 212 kW @ 2,000 RPM
- Wet liner technology ensuring in-chassis cylinder overhaul
- Integrated EGR with high-capacity electronic cooler
Isuzu 6WG1 Series (15.68L)
Engineered for high-stress mining shovels and ultra-heavy excavators, including the Hitachi ZX450, ZX470, ZX670, and ZX870. The 6WG1 is revered for exceptional low-end torque rise, micro-alloyed forged steel crankshaft, and extreme duty cycle reliability.
- Displacement: 15.681 cc (Bore: 147mm, Stroke: 154mm)
- Torque Output: Exceeding 2,250 Nm at 1,500 RPM
- Overhead camshaft (OHC) with four-valve induction system
- Dual-stage oil separation and centrifugal filtration
Isuzu 6UZ1 & 6SD1 Heavy Platforms
Bridging the displacement gap between medium and ultra-heavy industrial installations. The 6UZ1 (9.84L) utilizes compact high-rigidity CGI (Compacted Graphite Iron) blocks, driving quarry machinery, concrete pump trucks, and heavy-duty Giga commercial prime movers.
- 6UZ1 Displacement: 9.839 cc with optimized swirl porting
- 6SD1 Platform: Mechanical and early electronic hybrid resilience
- Superior fuel compatibility with regional low-cetane diesels
- Proven mean-time-between-failures (MTBF) exceeding 18,000 hours
Standardized Isuzu 6-Cylinder Engineering Parameters
Comprehensive engineering reference comparing thermal dynamics, injection architectures, and typical industrial excavator deployments across the primary Isuzu 6-cylinder engine catalog.
| Engine Family | Displacement (L) | Valvetrain Architecture | Fuel Injection System | Rated Power Range (kW) | Peak Torque (Nm) | Primary Industrial Equipment Application |
|---|---|---|---|---|---|---|
| 6HK1X (Tier 3 / Stage IIIA) | 7.79 L | OHC, 24-Valve (4 per cyl) | Denso Common Rail HP4 (180 MPa) | 190 - 212 kW @ 2,000 RPM | 1,000 Nm @ 1,500 RPM | Hitachi ZX330-3, ZX350LC-3, JCB JS330, Sumitomo SH350 |
| 6HK1-T (Tier 4F / Stage V) | 7.79 L | OHC, 24-Valve with VGT | High-Pressure Common Rail (200 MPa) + SCR | 202 - 220 kW @ 1,900 RPM | 1,080 Nm @ 1,500 RPM | Hitachi ZX350LC-6 / ZX380-6, Isuzu FVR/FSR Commercial |
| 6WG1-X (Tier 2 / Tier 3) | 15.68 L | OHC, 24-Valve Center-Drive | Electronic Unit Pump / Common Rail | 300 - 397 kW @ 1,800 RPM | 2,250 Nm @ 1,350 RPM | Hitachi ZX450-3, ZX470-3, ZX670-3, ZX870-3 Excavators |
| 6WG1-T (Tier 4F / Stage V) | 15.68 L | OHC, VGT Intercooled | Ultra-High Pressure Rail (220 MPa) + DPF/DEF | 377 - 405 kW @ 1,800 RPM | 2,350 Nm @ 1,300 RPM | Hitachi ZX490LC-6, ZX890-6, Heavy Rotary Drilling Rigs |
| 6UZ1-TCG | 9.84 L | OHC, Roller Rocker Induction | Electronic Common Rail Fuel System | 257 - 280 kW @ 2,000 RPM | 1,422 Nm @ 1,400 RPM | Sumitomo Excavators, SANY Concrete Pumps, Isuzu C&E Series |
| 6SD1-TC (Legacy Tier 2) | 9.84 L | OHV, 12-Valve In-Line Pump | Zexel Inline Mechanical or Early TICS | 184 - 235 kW @ 2,000 RPM | 1,050 Nm @ 1,400 RPM | Hitachi ZX330 (Early series), EX300-5, Mining Generators |
| 6BG1-T (Naturally Aspirated/Turbo) | 6.49 L | OHV, Gear-Driven Timing | Bosch 'A' Type Mechanical Direct Inj. | 110 - 130 kW @ 2,100 RPM | 637 Nm @ 1,600 RPM | Hitachi EX200-5, Furukawa Wheel Loaders, Stationary Gensets |
Macro-Industry Dynamics & Global Total Cost of Ownership (TCO)
Procuring replacement Isuzu 6-cylinder diesel engines and overhaul components has shifted from localized transactional sourcing to centralized international supply-chain optimization. Fleet operators must navigate downtime costs, which in commercial quarry and open-pit mining environments can exceed $3,500 per idle hour for 35-to-50-ton class machinery.
Tiered Purchasing Protocols
Global supply chain managers must choose between three distinct engine tiers depending on equipment lifecycle stages:
- Factory Genuine OEM: Complete crated engines for units under primary warranty operations.
- Precision Remanufactured: Block-and-head reconditioned assemblies utilizing German-standard line honing and original alloy tolerances.
- Targeted Rebuild Kits: Matching liners, pistons, rings, and journal bearings matched strictly by OEM grade stamps (A, B, C or 1, 2, 3).
Fuel Quality Sensitivity Mitigation
Modern common-rail 6HK1-T and 6WG1-T systems operate at tolerances measured in microns (3-5 µm clearance in injector spool valves). Procurement strategies must account for destination fuel parameters:
- High-sulfur diesel degradation risks in emerging markets (Africa, LATAM).
- Pre-filtration deployment using specialized 2-micron water coalescing filter elements.
- Diamond-Like Carbon (DLC) coated plunger needles to prevent needle seizure caused by low-lubricity ultra-low sulfur diesel (ULSD).
Supply Chain Resiliency Metrics
Sourcing directly from Guangzhou's major logistics hubs (Qicheng International Machinery Centre) eliminates intermediate markups while securing inventory certainty:
- Standing inventory of 100,000+ SKUs valued at $15M ensures zero-day dispatch for fast-moving consumables.
- Direct cross-referencing against Hitachi Parts Pro and Isuzu CSS-Net systems prevents obsolete part number delivery.
- Consolidated air-freight corridors delivering critical engine electrical sensors and gaskets in 72 hours globally.
Macro-Industry Solutions: Complete Powertrain Synchronization
Supplying high-performance 6-cylinder engines requires comprehensive awareness of the entire powertrain eco-system. An engine failure is rarely isolated; it cascades across hydraulic pumps, cooling packs, electronic control networks, and exhaust aftertreatment modules.
ECU-to-Pump Electronic Matching
Hitachi ZX Series excavators balance hydraulic load against Isuzu 6HK1/6WG1 engine torque through dual proportional valves. Incorrect fuel pump stroke volume or faulty speed sensors (e.g., 8-94390279-0) induce severe hydraulic cavitation and engine stalling under high boom-relief pressure. Our engineering team supplies pre-synchronized engine core and sensor packages that eliminate commissioning lag.
Zero Hydraulic Hunt • Instant Transient ResponseThermal Management & Cavitation Control

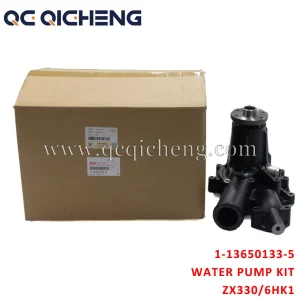

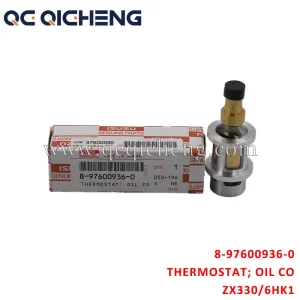

Heavy six-cylinder blocks generate significant localized thermal spikes around cylinders #5 and #6. Sourcing water pump kits (such as 1-13650133-5) and thermostat assemblies (8-97600936-0) with OEM-spec impeller geometries is essential to prevent coolant boundary-layer vaporization and subsequent wet-liner pitting corrosion caused by ultrasonic cavitation.
Sub-Cooling Protection • Anti-Cavitation ImpellersVibration Attenuation & Drivetrain Longevity
Torsional vibration from long 6-cylinder crankshafts can destroy hydraulic main pump input splines and flywheel dampers if dynamic balance is compromised during overhaul. Qicheng supplies ISO 1940 Grade G2.5 dynamically balanced flywheels and genuine viscous vibration dampers that protect the primary hydraulic pump group against harmonic shear fatigue.
Harmonic Dampening • Spline Wear ReductionLocalized Support, Exhaust Regulations & Quality Compliance
Operating a fleet spanning diverse geopolitical jurisdictions requires a supplier who understands regional environmental mandates. From non-regulated mining basins in developing nations to EPA Tier 4 Final and EU Stage V urban zones, engine specifications vary fundamentally.
Tier 2/3 vs. Stage V Conversions
Navigating cross-border machine relocations requires expert hardware adjustments. We provide certified EGR/DPF retrofit systems and mechanical injector adaptations for fleets moving between Europe, North America, Central Asia, and Africa.
100% CMM Metrology Testing
All cylinder blocks and crankshafts supplied by Qicheng are subject to 3D Coordinate Measuring Machine (CMM) inspections, verifying journal roundness within 0.005mm and deck flatness across 6-cylinder spans within 0.03mm.
Export Custom-Bonded Packaging
Heavy engine assemblies are hermetically vapor-sealed in VCI (Volatile Corrosion Inhibitor) preservation bags and bolted into solid fumigated wooden crates with internal dampening to ensure corrosion-free arrival in any port.
Multilingual Engineering Helpdesk
Our veteran engineering coordinators (Jane, Vicky, Linda, Samie, Sally) provide instantaneous part number resolution, OEM cross-checks, and installation torque guidelines via WhatsApp and enterprise channels globally.
Technical Roadmap: The Future of Isuzu Industrial Engines
As global carbon regulations intensify, the internal combustion engine is not disappearing; it is undergoing unprecedented transformation. Isuzu's future industrial powertrain roadmap introduces vital engineering pathways that forward-looking fleet procurement directors must incorporate into their 5-to-10-year capital expenditure plans.
1. HVO & Synthetic Biofuel Compatibility
Modern Isuzu 6-cylinder architectures (6HK1 and 6WG1 Stage V) are now factory-approved for 100% Hydrotreated Vegetable Oil (HVO100) and GTL (Gas-to-Liquid) synthetic fuels conforming to EN 15940. This drop-in fuel integration enables up to a 90% reduction in net carbon emissions without structural cylinder modifications, though it requires specific synthetic elastomer seals (FKM/Viton) in supply pumps to prevent fuel weepage.
2. Direct Hydrogen & Dual-Fuel Combustion
Isuzu, in partnership with global commercial vehicle consortiums, is piloting zero-carbon hydrogen internal combustion engines (H2-ICE) based on modified high-displacement I6 architecture. By swapping common-rail diesel injectors for high-pressure gaseous direct injectors and adopting specialized sodium-cooled exhaust valves, the rugged mechanical foundation of the 6-cylinder block is preserved while eliminating particulate matter.
3. Predictive IoT Telematics & Health Monitoring
Future Isuzu industrial configurations feature CAN-bus J1939-integrated predictive vibration and oil-dielectric sensors embedded in the sump (similar to 8-98090013-0 spacer integrations). These sensors transmit real-time viscosity degradation, soot accumulation, and main-bearing shell micro-wear to fleet AI diagnostic suites, shifting overhaul scheduling from fixed hours to predictive condition-based interventions.
Frequently Asked Questions: Isuzu 6-Cylinder Supply & Engineering
Comprehensive solutions to common procurement, overhaul, cross-referencing, and mechanical compatibility challenges encountered by engineering directors and fleet managers worldwide.
How do I guarantee complete compatibility between an Isuzu 6HK1 engine and a Hitachi ZX330-3 excavator?
What are the primary indicators of crankshaft journal fatigue in heavy-duty Isuzu 6WG1 engines?
Why is piston liner grade matching critical when ordering Isuzu 6-cylinder overhaul rebuild kits?
What is the standard warranty and testing protocol for Qicheng-supplied complete 6-cylinder engine assemblies?
How do you handle rapid logistics for international mining sites facing unexpected engine breakdown?

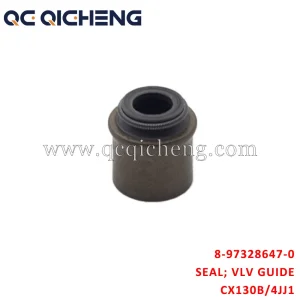

Precision Seals, Valvetrain Hardware & Electrical Regulation
Ensure leak-proof integrity, stable electrical output, and sustained compression across all heavy-duty Isuzu 4- and 6-cylinder industrial platforms with our certified original-spec replacement line.
Your Accountable Partner for Isuzu & Hitachi Heavy Systems
Founded in 2006, Qicheng Machinery & Equipment (China) Co., Ltd. has grown to operate 10 regional warehousing branches across China. We maintain an unwavering commitment to engineering accuracy: no component leaves our Zhuji Machinery Centre facility without verification against your machine's model, serial number, and factory parts catalog.
Guangzhou Central Logistics Hub
Situated in the Zhuji International Machinery Centre, our primary central facility houses over 100,000 active SKUs. This positioning grants immediate air and sea container freight channels for direct global distribution to over 120 countries.
Zero-Return Verification Engine
Our parts specialists verify superseded, regionalized, and Tier-specific part numbers using native manufacturer software before packaging. This proprietary matching workflow has lowered customer return rates below 0.08% across 18+ years of operation.
Multi-Fleet Ecosystem Support
Beyond our primary specialization in Hitachi excavators (ZX series) and Isuzu industrial engines (4HK1, 6HK1, 6WG1, 4JJ1), we support mixed contractor fleets carrying Cummins, Komatsu, Caterpillar, Case, and Sumitomo machinery for complete spare parts consolidation.
